Artifact Storage Lifecycle

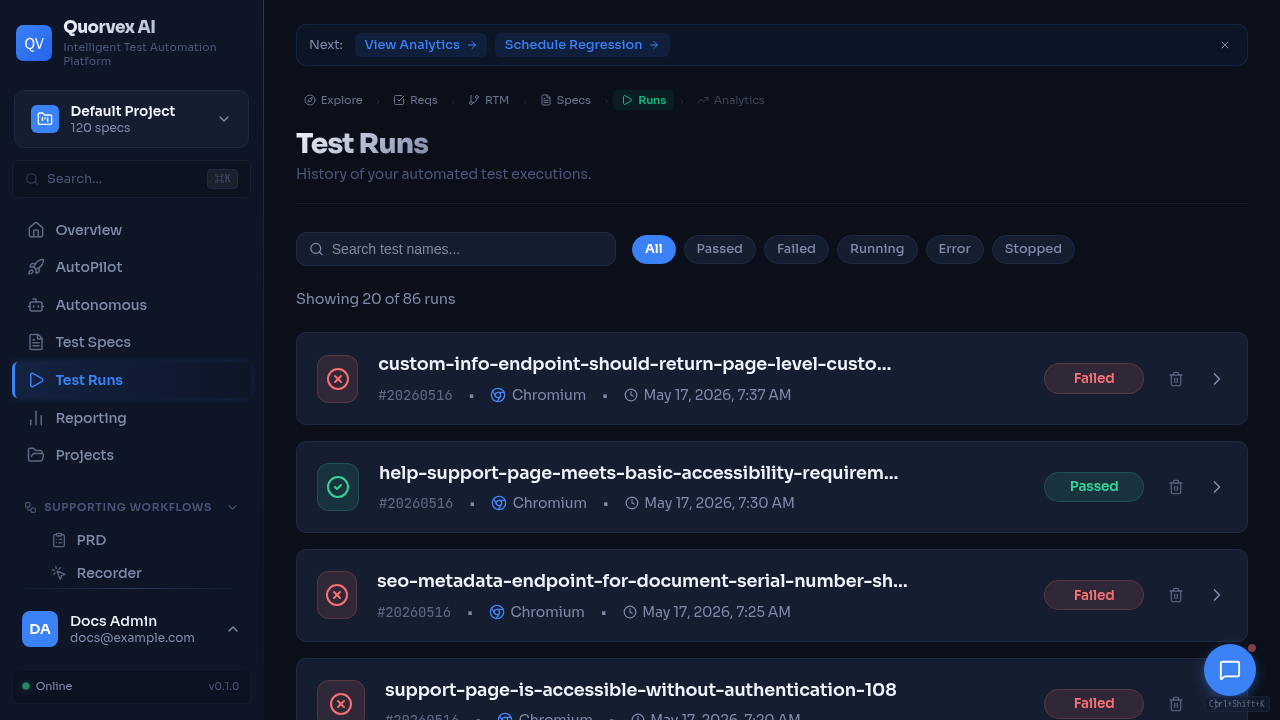

Test runs dashboard showing generated artifacts and execution history

Test runs dashboard showing generated artifacts and execution history.

How Quorvex AI stores, archives, monitors, and deletes test run artifacts.

Why Artifact Storage Is Tiered

Generated tests produce useful but heavy artifacts: traces, screenshots, videos, reports, plan files, validation output, logs, and run metadata. Recent artifacts need fast local access for debugging. Older artifacts usually only need enough data for audit, trend analysis, or support.

Quorvex AI separates artifact metadata from artifact bytes. The database keeps run and artifact records; local storage and MinIO hold files according to retention age.

graph TD
  A["Test run completes"] --> B["Artifacts written under runs/"]
  B --> C["Hot tier: local files"]
  C --> D["Archival job"]
  D --> E["Warm tier: core files in MinIO"]
  D --> F["Delete bulky local files"]
  E --> G["Cold tier: delete artifact bytes"]
  G --> H["Keep database metadata"]

Storage Tiers

Tier Default age Location Contents
Hot 0-30 days Local runs/ directory All artifacts
Warm 30-90 days MinIO artifacts bucket Core artifacts such as plans, validation output, and reports
Cold 90+ days Database metadata only Artifact files deleted

The retention windows are controlled by ARCHIVE_HOT_DAYS, ARCHIVE_TOTAL_DAYS, and related archive settings.

Core Components

Component Source Responsibility
Storage service orchestrator/services/storage.py MinIO connection, bucket operations, upload/download helpers
Archival service orchestrator/services/archival.py Retention policy, dry runs, archive jobs, local deletion
Health API orchestrator/api/health.py Database, local storage, MinIO, backup, Redis, alert checks
Artifact model RunArtifact Artifact path, storage type, size, archive time, expiry
Archive job model ArchiveJob One archival run and its processed/archive/delete counters
Storage stats model StorageStats Point-in-time storage health and size metrics

Archival Flow

The archival service finds completed runs older than the hot retention window, classifies artifacts, and applies the retention policy:

  1. List local files for each eligible run.
  2. Preserve core artifacts by uploading them to MinIO.
  3. Create RunArtifact rows for archived objects.
  4. Delete bulky artifacts that are not preserved in warm storage.
  5. Find runs older than total retention and delete remaining artifact files.
  6. Record an ArchiveJob summary with counts, bytes, errors, and configuration.

Use dry-run mode before changing retention or running archival manually.

Health and Monitoring

GET /health/storage returns an aggregate health view:

Area Checks
Database connectivity, size, run counts
MinIO connection, bucket existence, object counts, object sizes
Local storage runs/, specs, tests, disk usage
Backups latest backup presence and age
Redis queue backend health when configured
Alerts derived warnings for unhealthy dependencies or large storage

POST /health/storage/record records a StorageStats snapshot for trend analysis.

Operational Rules

  • Treat local runs/ as hot operational storage, not permanent archival.
  • Keep MinIO credentials and buckets backed up with production configuration.
  • Do not delete database run metadata when deleting old artifact bytes.
  • Use make archival-dry-run before changing retention windows.
  • Use make storage-health after backup, restore, or MinIO configuration changes.
